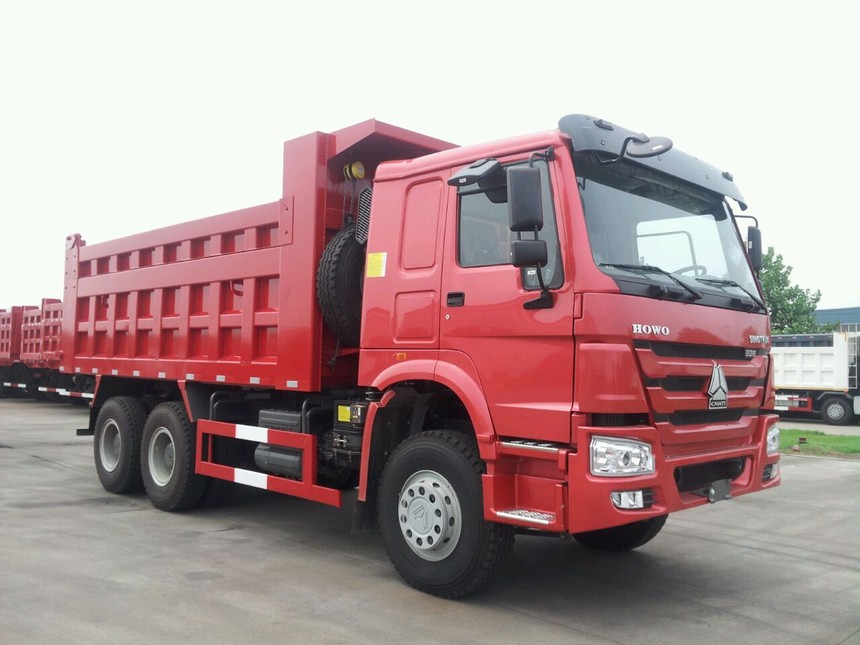

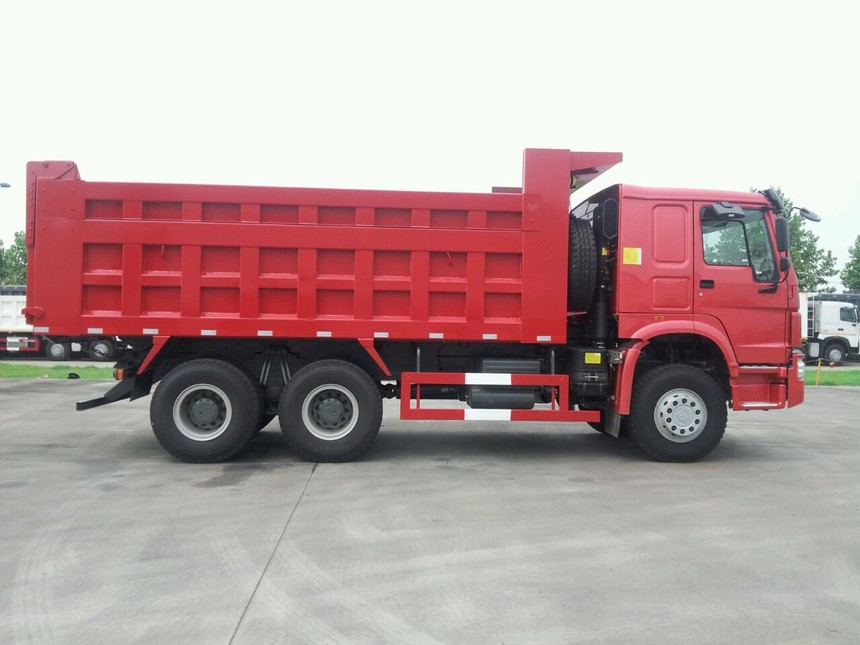

HOWO Dump Truck

Collect

HOWO TRUCK

MAIN DESCRIPTION
Overall Dimension	8545mm2496mm3350mm (LWH)
Payload	25-30ton		Curb Weight	12500kg
Front Overhang	1500mm		Rear Overhang	1870mm
Wheelbase	3825mm +1350mm
CHASSIS
Chassis Brand	SINOTRUK HOWO
Driving Type	6x4
Cab	HW76, left hand drive, air-conditioner, one bed
Engine and Power	Brand: SINOTRUK, diesel engine, 336hp (247kw), 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, Euro II emission standard
Steering	ZF8098, hydraulic steering with power assistance
Transmission	HW15710, 10 forward speeds and 2 reverse
Clutch	Model: 430, diaphragm clutch
Front Axle	HF9, load capacity 9 ton, drum brake
Rear Axle	HC16 tandem axle, load capacity 13000kg x2, ratio 5.73
Tire	12.00-20, 11units including 1 spare tire
CARGO BODY
Inside Dimension		5600mm2300mm1500mm(LWH)
Hydraulic Cylinder		Ventral T-type lift system
Steel sheet thickness		Floor 8mm, side wall 6mm
Tailgate		One-piece tailgate with upper articulation, safety lock system

Tips to build your truck body
Transport medium	Floor(mm)	Side(mm)
Soil or Stone	8	4
Construction Waste	10	6
Big Ore	12	8
Coal	6	4
clay	8	4
Grain or Chemical fertilizer	6	4
